TURNING DEVICE RUD TECDOS TM.
Flexibly turn, rotate and tilt injection moulding tools, punching tools and forming tools weighing up to 64 tonnes.

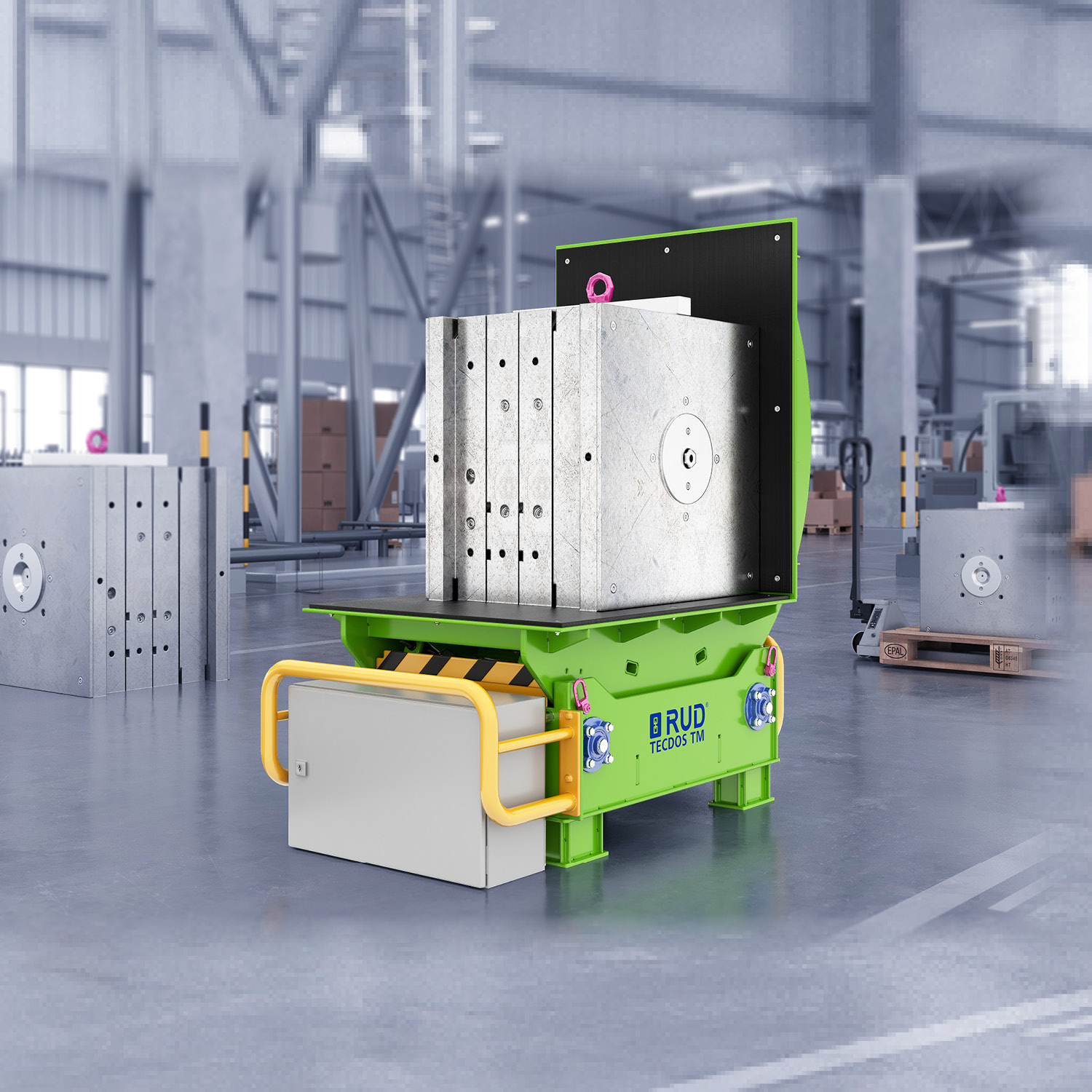

The RUD TECDOS TM turning device (also known as a turning traverse, turning table or mould turner) turns, rotates or tilts moulds in seconds at the touch of a button. The compact turning device does not need to be anchored to the floor. This makes it easy to transport the tool turner using a forklift truck, and turning injection moulding tools, punching tools and forming tools has never been so safe and efficient. The amortisation period for the tool turner is less than one year. The RUD TECDOS TM turning device is therefore a cost-effective mechanical engineering solution to prevent damage and hazards during mould handling.
Construction and components of mould flipper RUD TECDOS TM.
The mould flipper RUD TECDOS TM is controlled remotely and can turn, rotate, or tilt injection moulds weighing up to 64 tonnes in a matter of seconds.

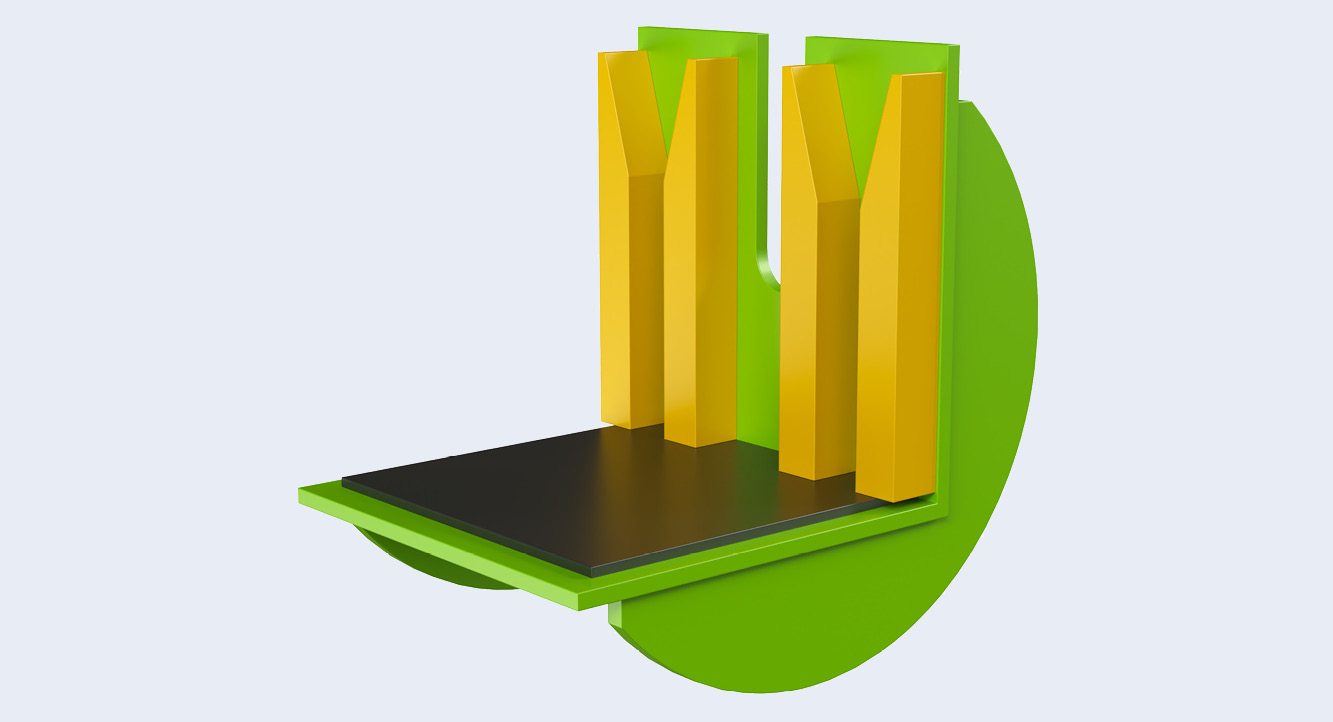

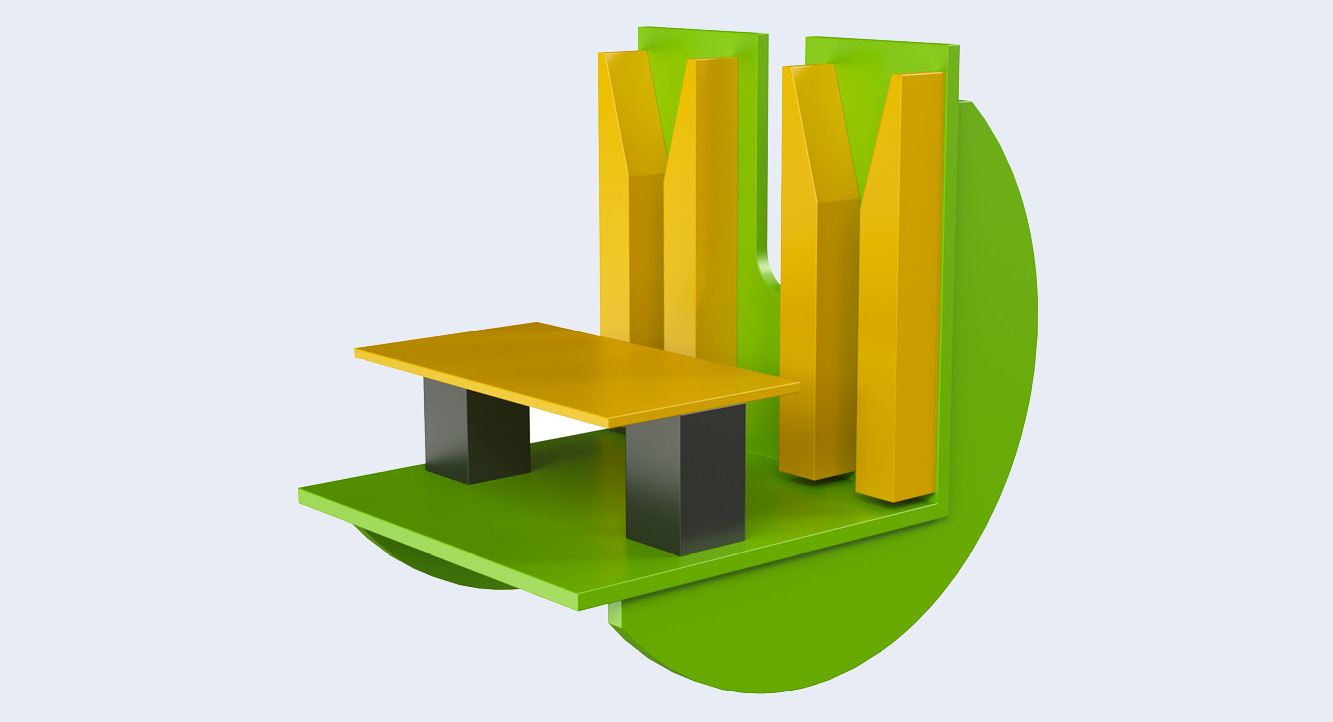

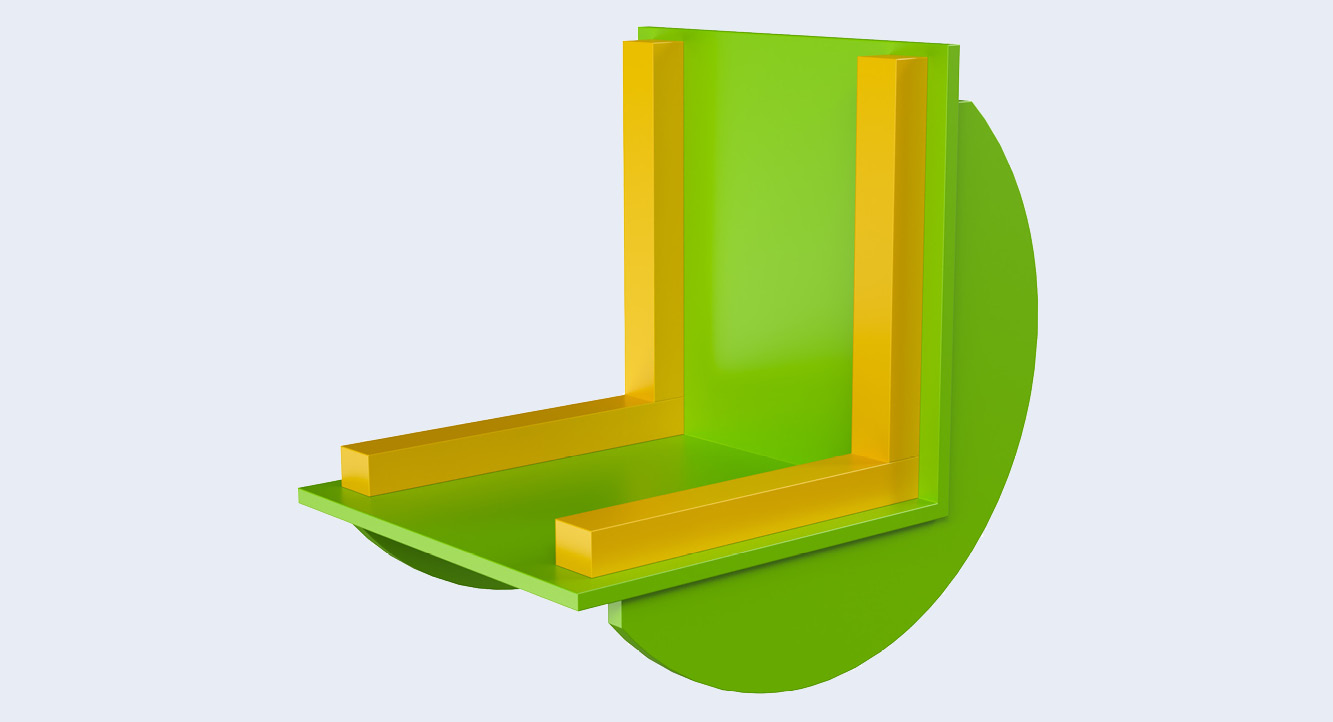

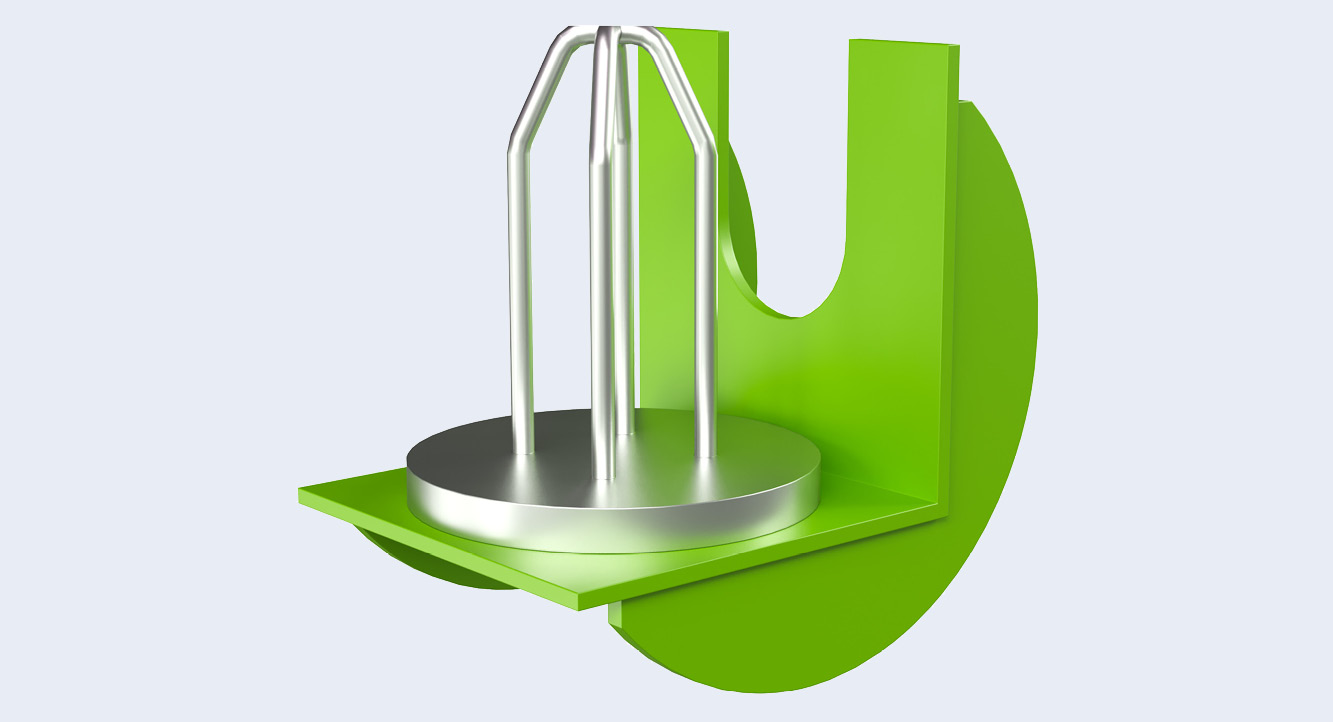

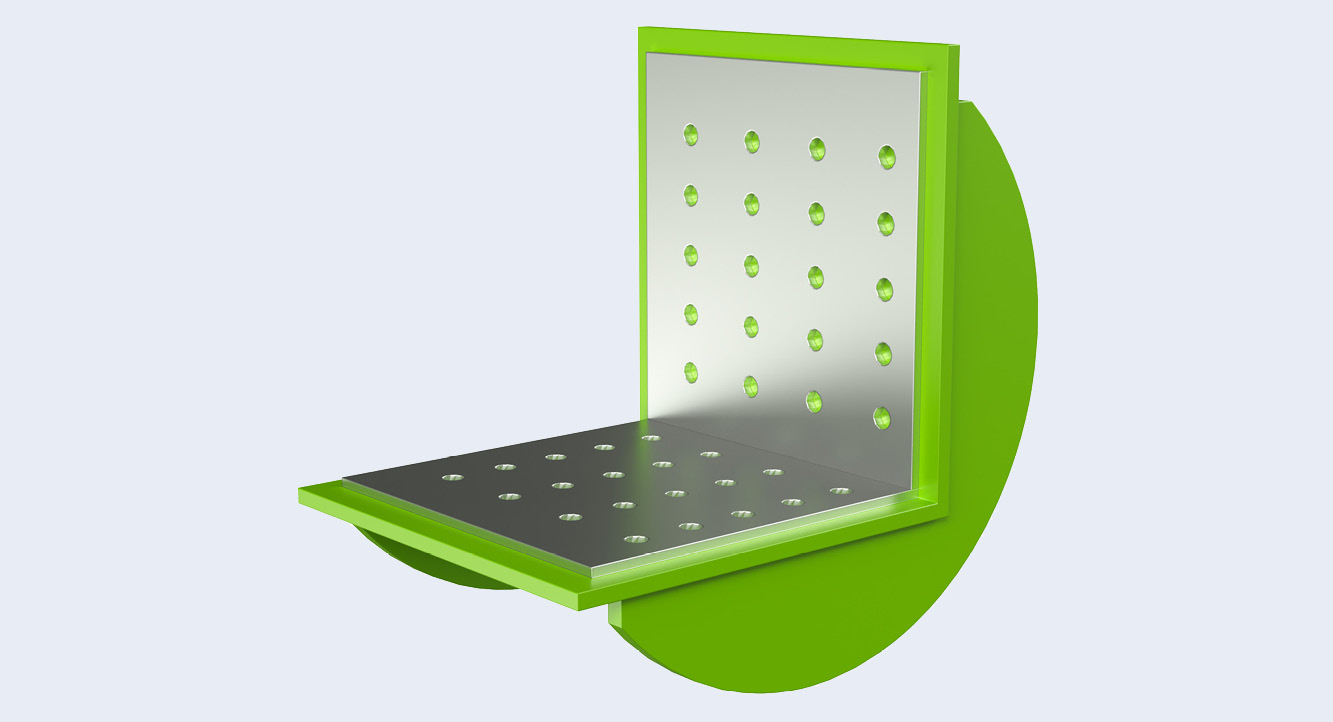

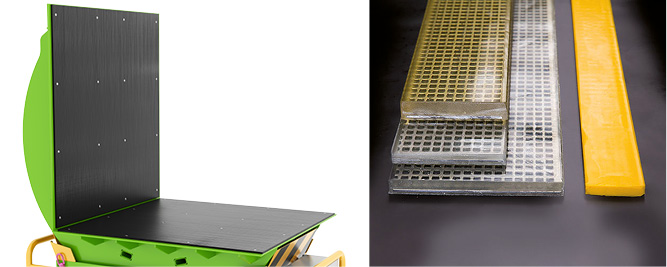

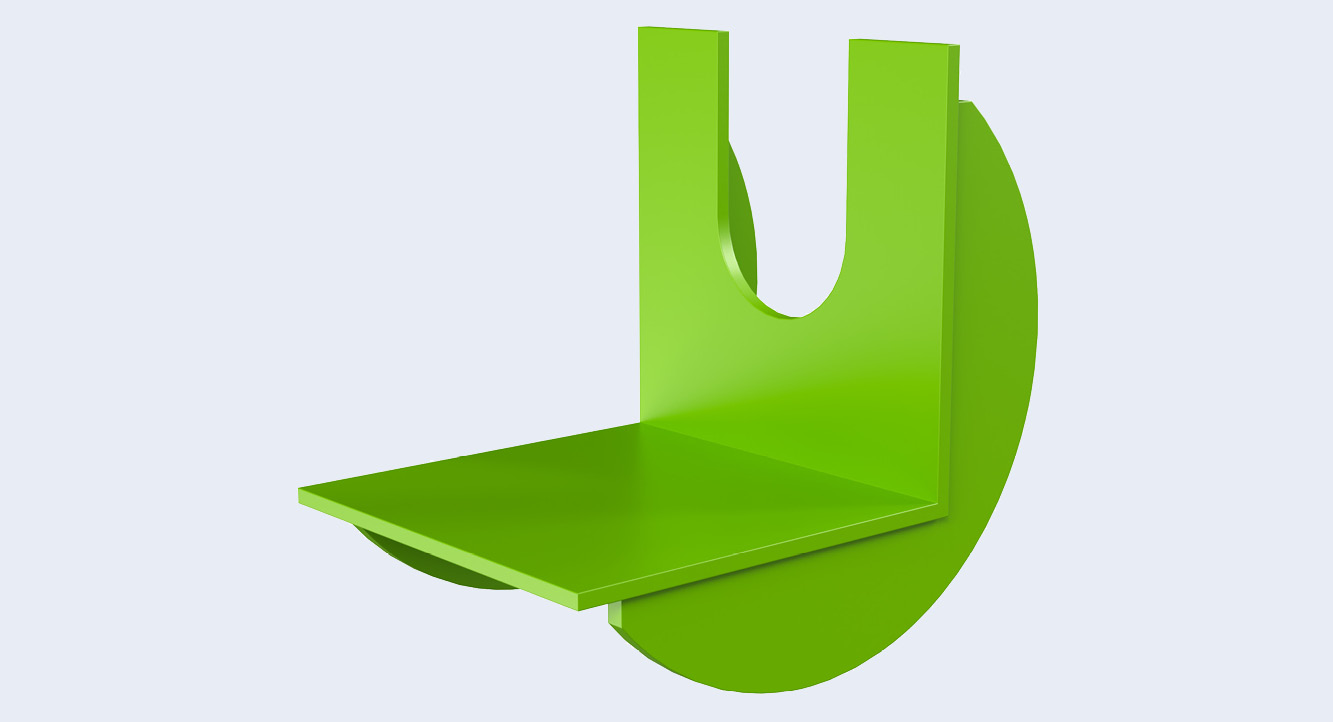

RUD TECDOS TM plates.
On request, you can get a bespoke plate for your RUD TECDOS TM. Choose a plate that is specifically tailored to your requirements or contact us with your enquiry.

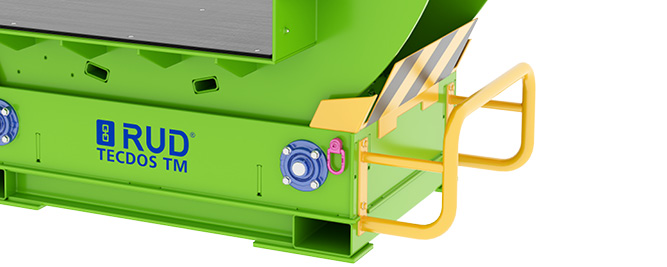

RUD TECDOS TM contact protection (optional).
- Protects operators from reaching into the danger zone (crushing hazard)
- Protective yellow/black plate

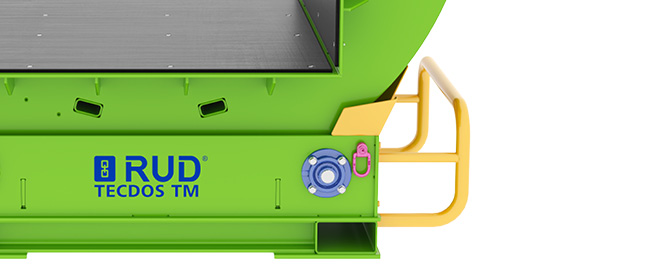

RUD TECDOS TM spare bumper (optional).
Hoop design provides distance protection:
- for the front zone
- for the rear zone
- RUD TECDOS TM gentle mould turning device for the injection moulding industry
- Ensures the safety of the operator and the moulds
- Ergonomic mould handling
- Operation of the mould turner by just one employee
- Time and cost savings when turning injection moulding tools and moulds
- Robust, flexible and maintenance-friendly turning device - designed to meet your needs
- Option to extend the warranty
| TYPE | TABLE SURFACE IN MM | SURFACE HEIGHT IN MM | COMPATIBILITY INKG | PROPERTY WEIGHT CA. IN KG |
|---|---|---|---|---|
| TM 08/10-5 | 800 x 1000 | 542 | 5000 | 600 |
| TM 08/13-10 | 800 x 1,300 | 595 | 10,000 | 1,050 |
| TM 13/13-10 | 1,300 x 1,300 | 595 | 10,000 | 1,150 |
| TM 15/18-16 | 1,500 x 1,800 | 885 | 16,000 | 3,700 |
| TM 20/20-20 | 2,000 x 2,000 | 885 | 20,000 | 4,000 |
| TM 20/23-25 | 2,000 x 2,300 | 1,167 | 25,000 | 8,000 |
| TM 25/25-32 | 2,500 x 2,500 | 1,167 | 32,000 | 8,000 |
| TM 25/25-40 | 2,500 x 2,500 | 1,167 | 40,000 | 8,000 |
| TM 25/35-64 | 2,500 x 3,500 | 2,075 | 64,000 | 17,000 |
