Mould opener RUD TECDOS TSB

Open and maintain forming tools and injection moulding tools safely and quickly.

The RUD TECDOS TSB mould opener makes it easy to open and close forming tools and injection moulds weighing up to 2.5 tonnes. The mould halves can be separated from each other by hand thanks to the mobility of the mounting plates. The moulds can be inspected, cleaned and maintained directly on the assembly table. Thanks to its low weight and compact dimensions, the RUD TECDOS TSB mechanical engineering solution can be used flexibly throughout the factory. Together with the RUD TECDOS TMB, the RUD TECDOS TSB offers a safe and fast combination of tool turner and mould opener for injection moulds and injection moulding tools.

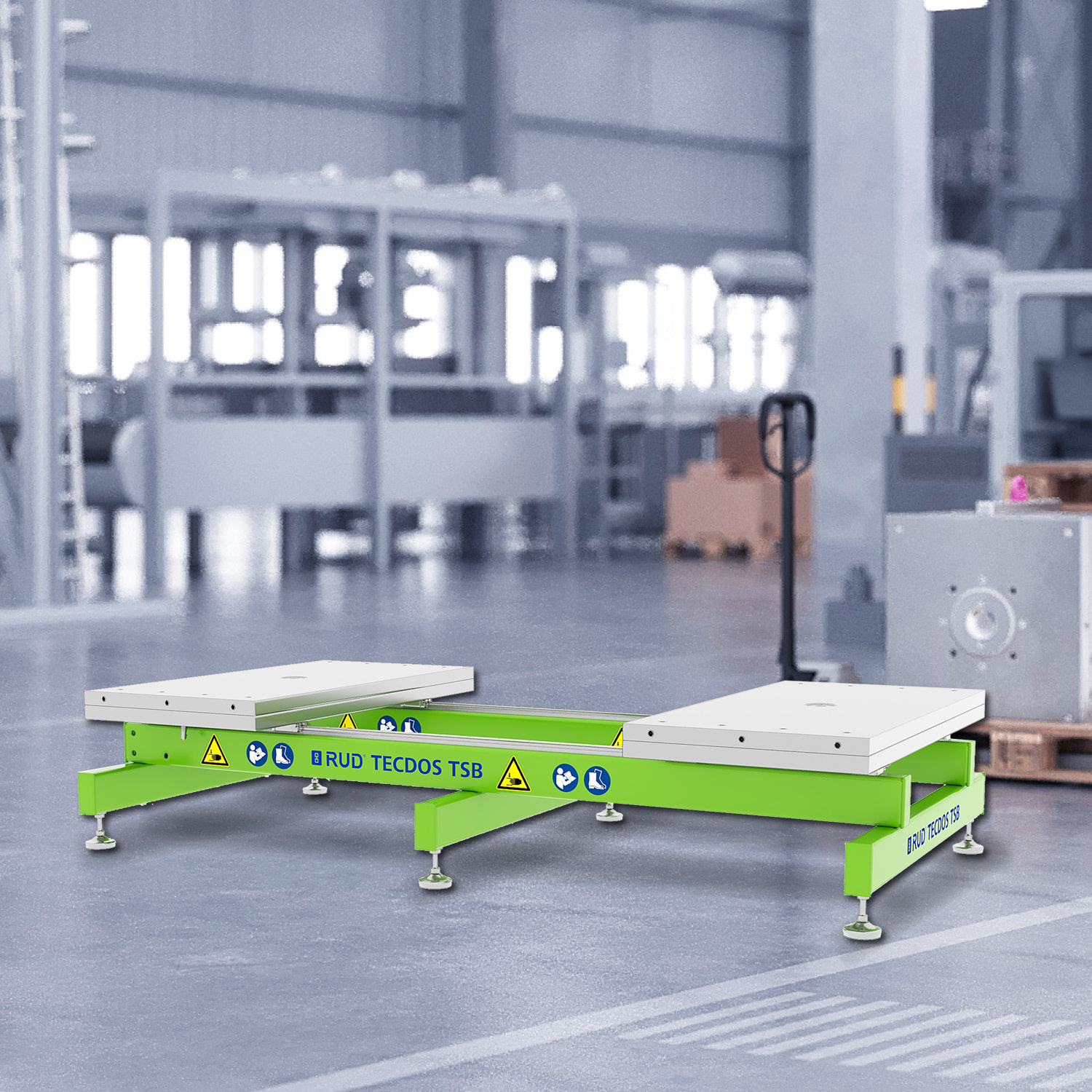

Manually operated assembly table RUD TECDOS TSB | Structure and components of the mechanical engineering solution.

Manual opening and closing of injection moulds and injection moulding tools up to 2.5 tonnes – with the manually operated RUD TECDOS TSB assembly table.

Interested? Then give us a call on

+49 7361 504-1457 or send us an email.

Movable top plate

  • With locking mechanism
  • Rotates 360

Fixed mounting plate

Rotates 360°.

Adjustable feet

For levelling uneven hall floors.

Your advantages at a glance

Reduce production risks such as downtime and rejects in in-house and contract manufacturing with comprehensive tests and centralised processes. Save time and resources, increase productivity despite a shortage of skilled labour and ensure maximum safety through clear labelling.

  • The mould opener can be used for injection moulds up to 2.5 tonnes
  • Hand-guided (manual) and controlled opening of moulds without the use of electrical, pneumatic or hydraulic auxiliary energy
  • 360° rotatability of the mould halves
  • Maintenance, assembly or disassembly on the work surface of the RUD TECDOS TSB mechanical engineering solution
  • Direct opening and closing possible without time-consuming disassembly of hoses, connections and other components
  • Optimisation of mould handling processes by reducing handling times and the time an operator is required
  • Safe+fast: avoidance of damage to injection moulds and injection moulding tools, machines and infrastructure

Technical data



Type Working surface Total size Support height Load capacity Weight
TSB 06/12-2.5 600 x 300 mm 600 x 1,200 mm 310 mm 2,500 kg approx. 300 kg
TSB 08/16-2.5 800 x 400 mm 800 x 1,600 mm 310 mm 2,500 kg approx. 20 kg
Request a rental device

Additional option for the RUD TECDOS TSB

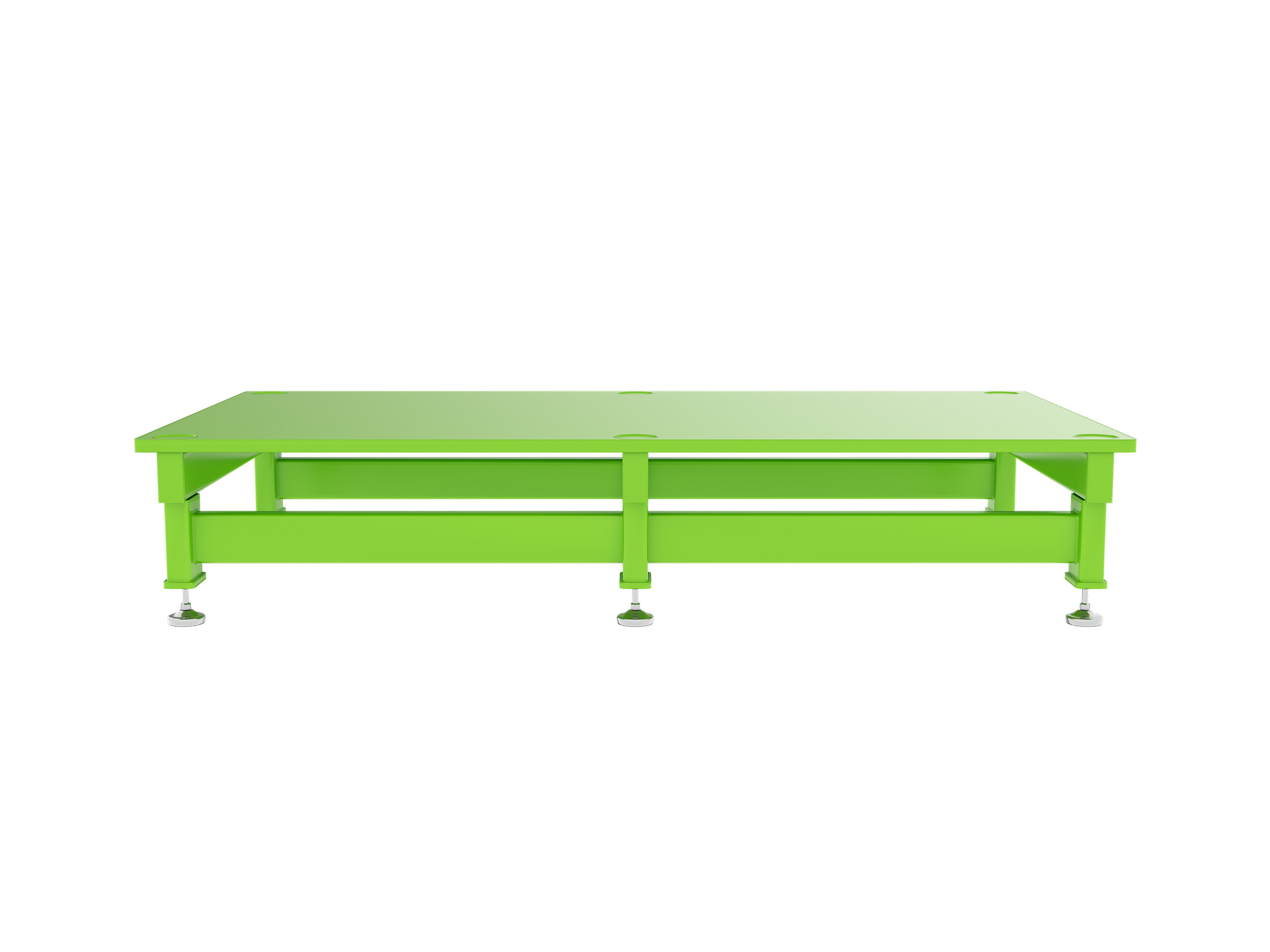

Under table

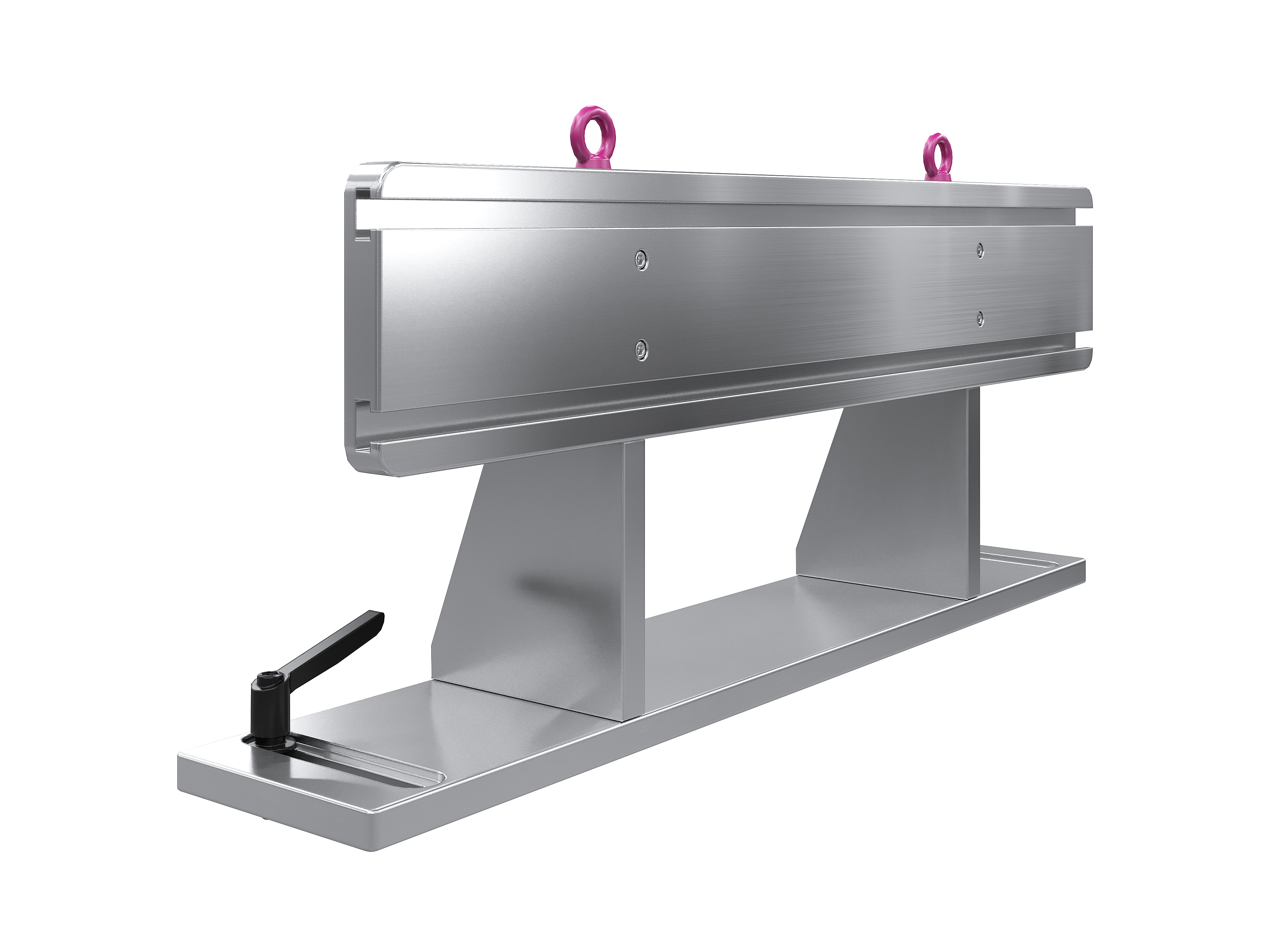

Mounting bracket
Switchable magnetic angle

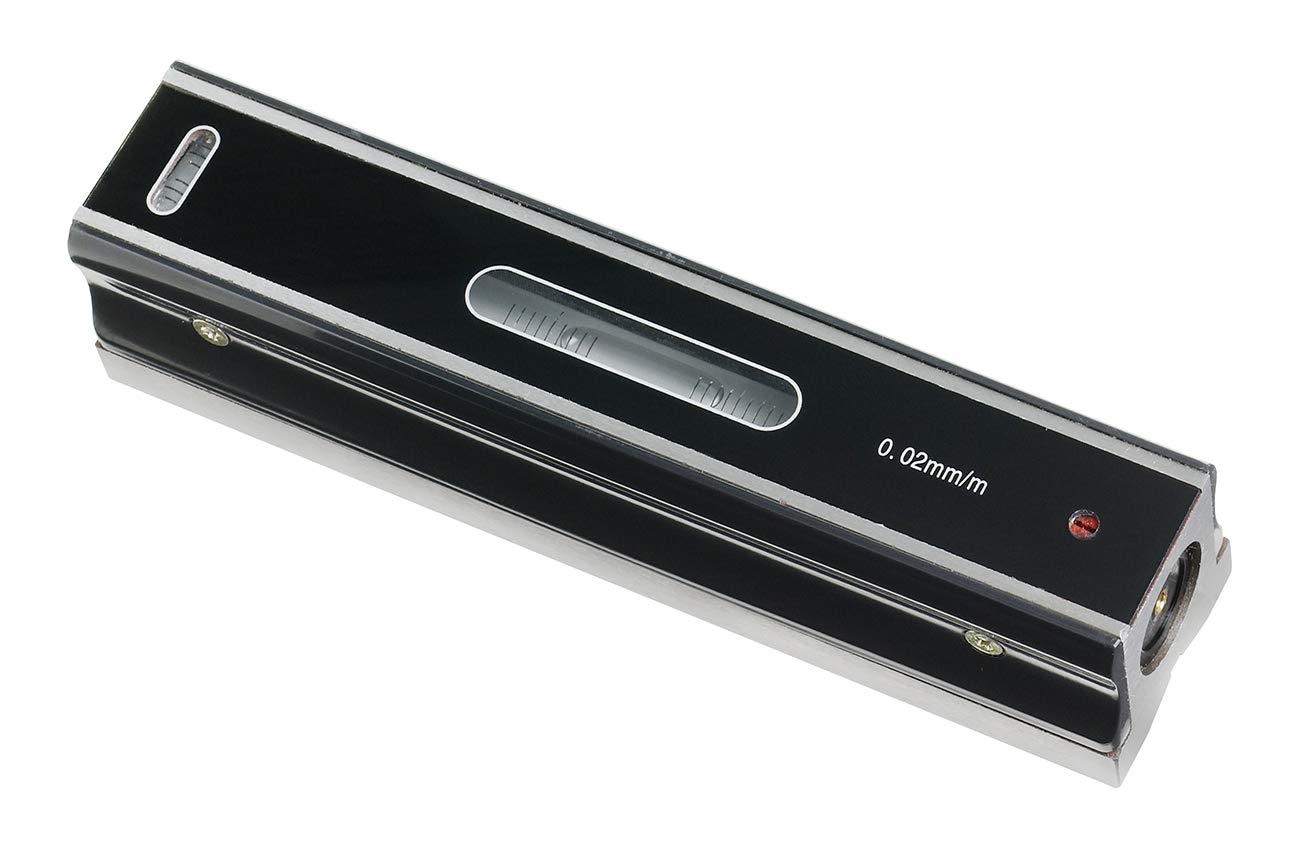

Machine spirit level
